Panasonic Electronic Components
CAP ALUM 100UF 20% 6.3V SMD

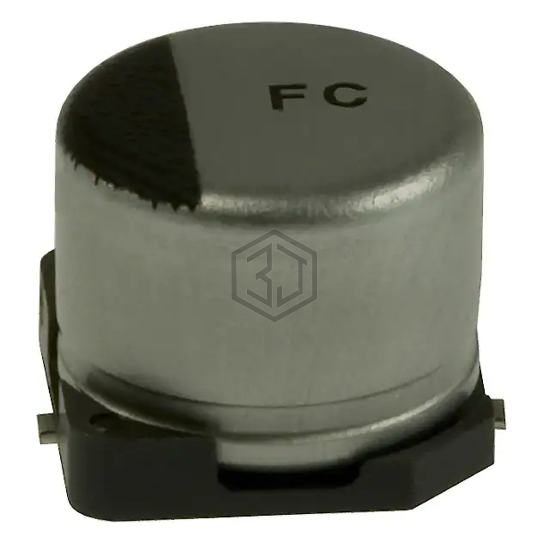

EEV-FC0J101P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 9,054
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 105 mA @ 120 Hz |
| Ripple Current @ High Frequency | 140 mA @ 100 kHz |
| Impedance | 1 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FC0J101P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVH100ADA101MH63G | United Chemi-Con | CAP ALUM 100UF 20% 10V SMD | 80% | View |
| EMVH100ADA101MF80G | United Chemi-Con | CAP ALUM 100UF 20% 10V SMD | 80% | View |
| VEJ101M1ATR-0806S | Surge | CAP ALUM 10V POLAR | 80% | View |
| VUA101M1ATR-0806S | Surge | CAP ALUM 10V POLAR | 71% | View |
| EEV-HA1A101WP | Panasonic Electronic Components | CAP ALUM 100UF 20% 10V SMD | 68% | View |
| EMVL160ADA101MF80G | United Chemi-Con | CAP ALUM 100UF 20% 16V SMD | 61% | View |
Submit your RFQ for EEV-FC0J101P and get a quote within 24 hours.
