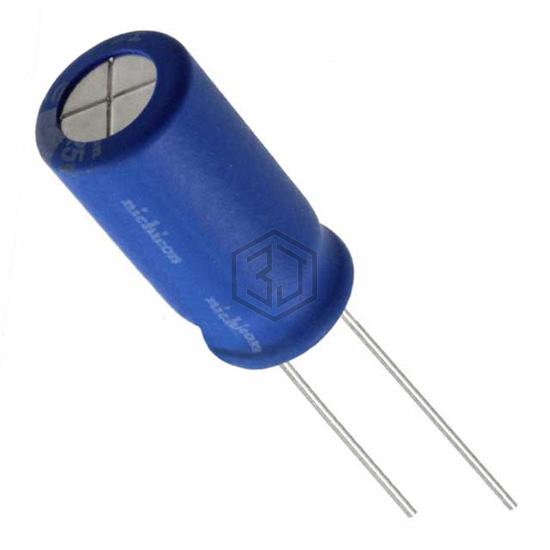

CAP ALUM 470UF 20% 35V RADIAL
UBW1V471MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,719
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 665 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.33 A @ 100 kHz |
| Impedance | 58 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216060471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 89% | View |
| UBW1E471MPD1TD | Nichicon | CAP ALUM 470UF 20% 25V RADIAL | 83% | View |
| UBX1J471MHL | Nichicon | CAP ALUM 470UF 20% 63V RADIAL | 80% | View |
| UBX1H471MHL | Nichicon | CAP ALUM 470UF 20% 50V RADIAL | 74% | View |
| UBW1J471MHD | Nichicon | CAP ALUM 470UF 20% 63V RADIAL | 74% | View |
| MAL216056471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V RADIAL | 73% | View |
Submit your RFQ for UBW1V471MHD1TO and get a quote within 24 hours.
