Panasonic Electronic Components

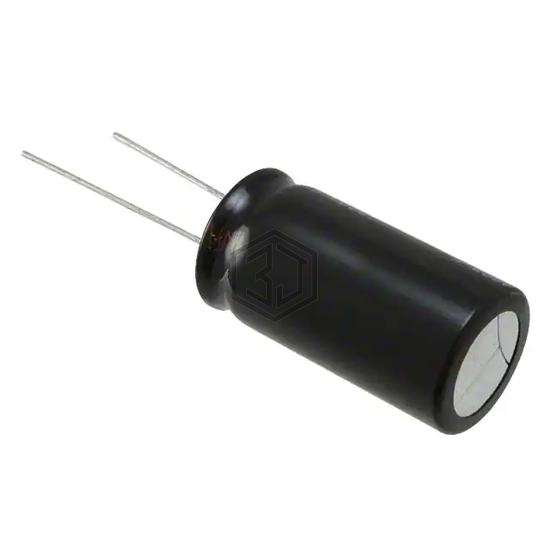

CAP ALUM 22000UF 20% 10V RADIAL
EEU-HD1A223 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.76 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for EEU-HD1A223 and get a quote within 24 hours.
