Panasonic Electronic Components

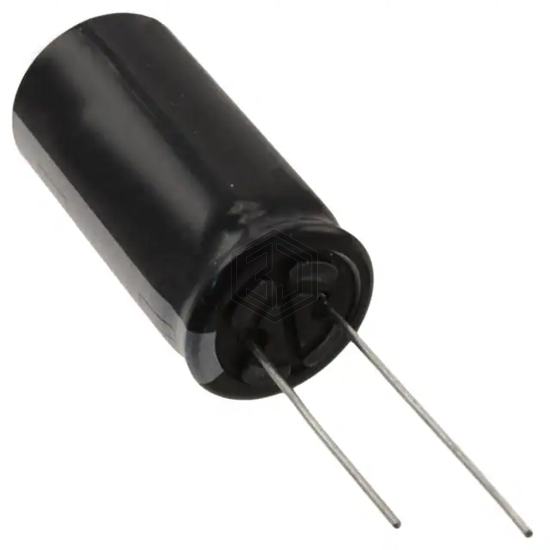

CAP ALUM 22000UF 20% 6.3V RADIAL
ECA-0JHG223 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 1,275
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.703 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ0J223MHH | Nichicon | CAP ALUM 22000UF 20% 6.3V RADIAL | 100% | View |
| UVY0J223MHD | Nichicon | CAP ALUM 22000UF 20% 6.3V RADIAL | 99% | View |
| EKMG6R3ELL223MM40S | United Chemi-Con | CAP ALUM 22000UF 20% 6.3V RADIAL | 98% | View |
| MALREKB00KK522B00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 6.3V RADIAL | 96% | View |
| EEU-HD1A223 | Panasonic Electronic Components | CAP ALUM 22000UF 20% 10V RADIAL | 85% | View |
| 10PX22000MEFC18X35.5 | Rubycon | CAP ALUM 22000UF 20% 10V RADIAL | 82% | View |
