Panasonic Electronic Components

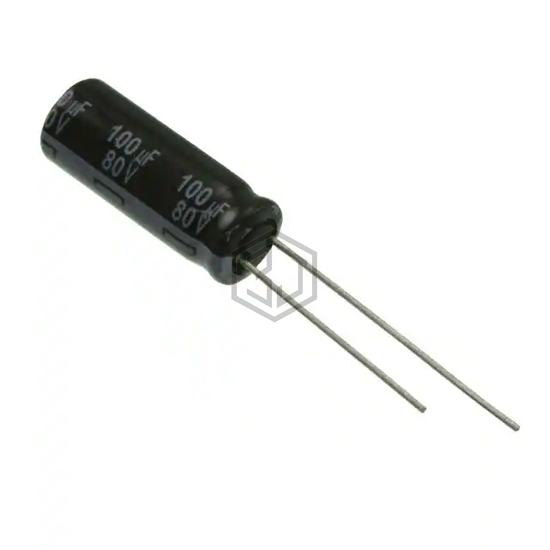

CAP ALUM 100UF 20% 80V RADIAL
EEU-FS1K101L is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 4,729
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 9000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 567 mA @ 120 Hz |
| Ripple Current @ High Frequency | 810 mA @ 100 kHz |
| Impedance | 96 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESX107M100AL3AA | KEMET | CAP ALUM RAD 105C | 82% | View |
| UPW2A101MHD1CV | Nichicon | CAP ALUM 100V POLAR | 75% | View |
| UPW2A101MHD | Nichicon | CAP ALUM 100UF 20% 100V RADIAL | 71% | View |
| EKHF421ELL101MU35S | Chemi-Con | CAP ALUM 100UF 20% 420V RADIAL | 68% | View |
| 35ZLJ100MTA6.3X11 | Rubycon | CAP ALUM 100UF 20% 35V RADIAL | 62% | View |
| 420BXW100MEFR18X30 | Rubycon | CAP ALUM 100UF 20% 420V RADIAL | 53% | View |
Submit your RFQ for EEU-FS1K101L and get a quote within 24 hours.
