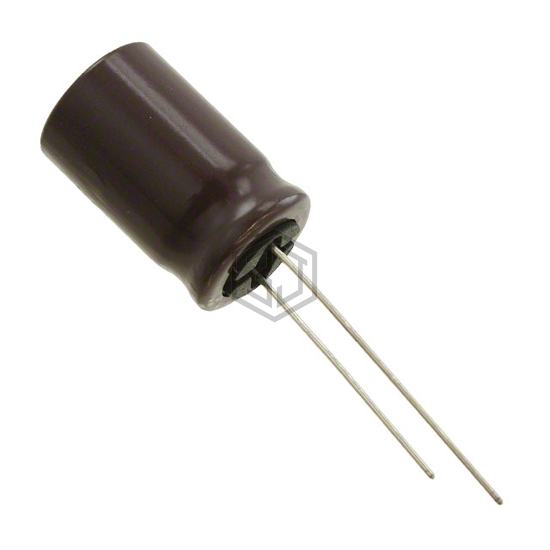

CAP ALUM 100UF 20% 100V RADIAL
UPW2A101MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,856
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 377 mA @ 120 Hz |
| Ripple Current @ High Frequency | 580 mA @ 100 kHz |
| Impedance | 180 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2A101MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RSRJH101M1HG20300T | Elna America | ALUM ELECT CAP | 100% | View |
| MAL213659101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 100V RADIAL | 89% | View |
| ECA-2AHG101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 100V RADIAL | 83% | View |
| UBW1H101MPD1TD | Nichicon | CAP ALUM 100UF 20% 50V RADIAL | 75% | View |
| 517D107M063CC8PE3 | Vishay Sprague | CAP ALUM 100UF 20% 63V RADIAL | 68% | View |
| MAL214651101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 67% | View |
Submit your RFQ for UPW2A101MHD and get a quote within 24 hours.
