Panasonic Electronic Components
CAP ALUM 560UF 20% 50V RADIAL

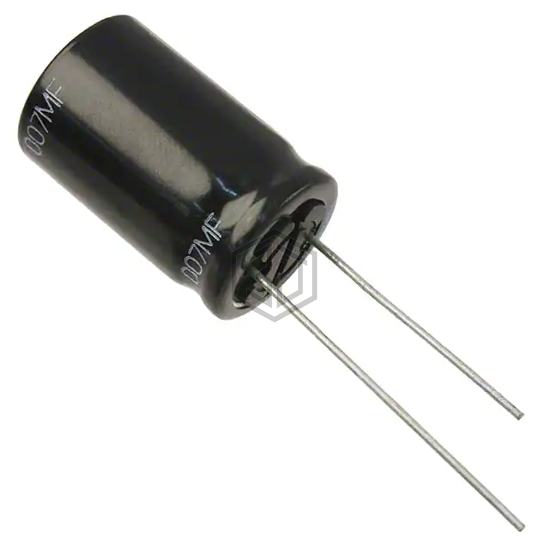

EEU-FR1H561B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,703
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.995 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.66 A @ 100 kHz |
| Impedance | 18 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBY1J561MHL1TO | Nichicon | CAP ALUM 560UF 20% 63V RADIAL | 81% | View |
| 250MXC560MEFC30X30 | Rubycon | CAP ALUM 560UF 20% 250V SNAP | 76% | View |
| ELHS4H1VSN561MA60S | United Chemi-Con | CAP ALUM 560UF 20% 475V SNAP | 72% | View |
| B43504A2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 68% | View |
| LGG2D561MELA25 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 67% | View |
| EKXJ201ELL561MM50S | United Chemi-Con | CAP ALUM 560UF 20% 200V RADIAL | 66% | View |
Submit your RFQ for EEU-FR1H561B and get a quote within 24 hours.
