CAP ALUM 560UF 20% 200V SNAP

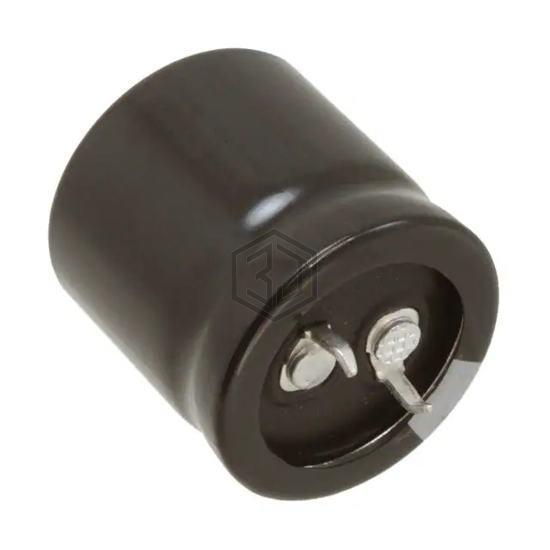

LGG2D561MELA25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 8,682
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.48 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.22 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504A2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 84% | View |
| EKXJ201ELL561MM50S | United Chemi-Con | CAP ALUM 560UF 20% 200V RADIAL | 77% | View |
| UBY1J561MHL1TO | Nichicon | CAP ALUM 560UF 20% 63V RADIAL | 72% | View |
| EEU-FR1H561B | Panasonic Electronic Components | CAP ALUM 560UF 20% 50V RADIAL | 67% | View |
| ELHS4H1VSN561MA60S | United Chemi-Con | CAP ALUM 560UF 20% 475V SNAP | 61% | View |
| EKYA500ELL561MK20S | United Chemi-Con | CAP ALUM 560UF 20% 50V RADIAL | 58% | View |
