Panasonic Electronic Components

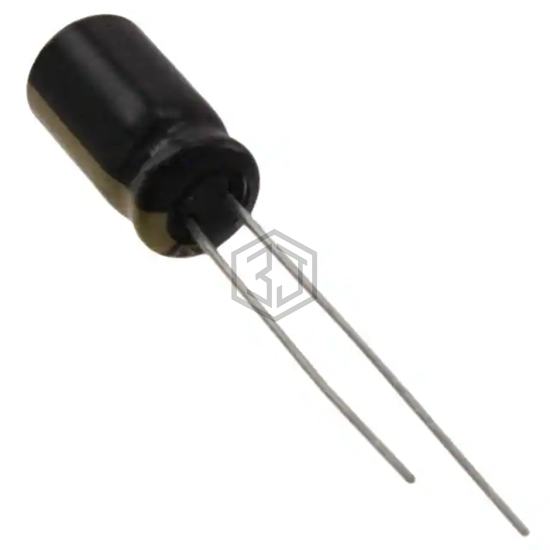

CAP ALUM 56UF 20% 50V RADIAL
EEU-FM1H560H is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 56UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,129
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 283.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 405 mA @ 100 kHz |
| Impedance | 140 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50ZLJ56MT16.3X11 | Rubycon | CAP ALUM 56UF 20% 50V RADIAL | 87% | View |
| 63ZL56MEFCT78X11.5 | Rubycon | CAP ALUM 56UF 20% 63V RADIAL | 82% | View |
| EEU-FS1K560 | Panasonic Electronic Components | CAP ALUM 56UF 20% 80V RADIAL | 78% | View |
| MAL213658569E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 56UF 20% 63V RADIAL | 64% | View |
| 25ZT56M6.3X11 | Rubycon | CAP ALUM 56UF 20% 25V RADIAL | 58% | View |
| 63YXH56MEFC8X11.5 | Rubycon | CAP ALUM 56UF 20% 63V RADIAL | 55% | View |
Submit your RFQ for EEU-FM1H560H and get a quote within 24 hours.
