Panasonic Electronic Components

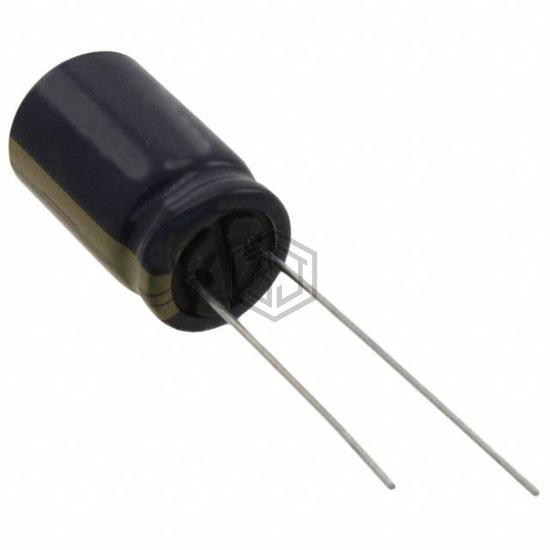

CAP ALUM 220UF 20% 100V RADIAL
EEU-FC2A221L is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 6,951
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 676 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.04 A @ 100 kHz |
| Impedance | 87 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB05FG322L00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 100V RADIAL | 98% | View |
| RXW221M1HBK-1020S | Surge | CAP ALUM 50V POLAR | 76% | View |
| 601D227G025FE2 | Vishay Sprague | CAP ALUM 220UF 25V AXIAL | 56% | View |
| UPW1E221MPD1TD | Nichicon | CAP ALUM 220UF 20% 25V RADIAL | 55% | View |
| MAL211916221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 25V AXIAL | 51% | View |
| MAL216031221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 50V RADIAL | 51% | View |
Submit your RFQ for EEU-FC2A221L and get a quote within 24 hours.
