Vishay Beyschlag/Draloric/BC Components

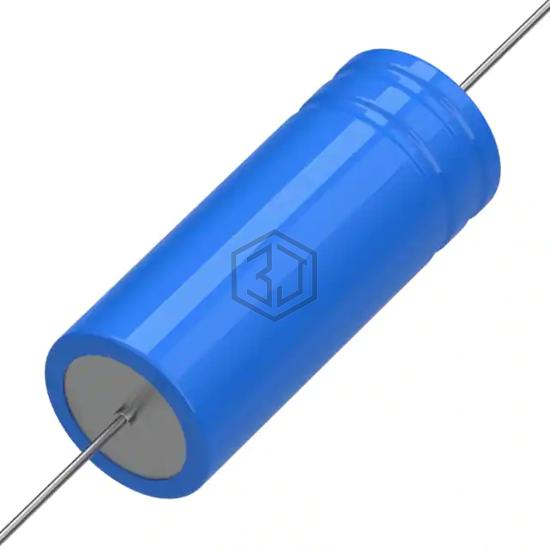

CAP ALUM 220UF 25V AXIAL
MAL211916221E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 220UF 25V AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Axial, Can.
In Stock: 3,328
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 650mOhm @ 100Hz |
| Lifetime @ Temp. | 8000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 500 mA @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 380 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212326221 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V AXIAL | 90% | View |
| UBX1V221MHL1TO | Nichicon | CAP ALUM 220UF 20% 35V RADIAL | 70% | View |
| UBX1J221MHL1TO | Nichicon | CAP ALUM 220UF 20% 63V RADIAL | 70% | View |
| MAL214668221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V RADIAL | 59% | View |
| UBW1H221MPD | Nichicon | CAP ALUM 220UF 20% 50V RADIAL | 57% | View |
| MAL216065221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 16V RADIAL | 54% | View |
