Panasonic Electronic Components

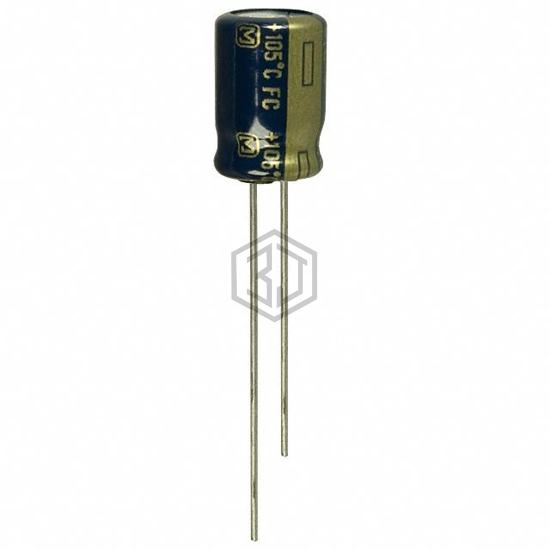

CAP ALUM 22UF 20% 100V RADIAL
EEU-FC2A220 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 2,727
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 169 mA @ 120 Hz |
| Ripple Current @ High Frequency | 260 mA @ 100 kHz |
| Impedance | 680 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SEK220M100ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 100V RADIAL | 100% | View |
| UVY2A220MED | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 78% | View |
| B41896C6226M000 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 76% | View |
| UPJ1K220MED1TA | Nichicon | CAP ALUM 22UF 20% 80V RADIAL | 61% | View |
| 672D226H050CD5C | Vishay Sprague | CAP ALUM 22UF 50V RADIAL | 56% | View |
| EEU-FC1H220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 52% | View |
