CAP ALUM 22UF 20% 100V RADIAL

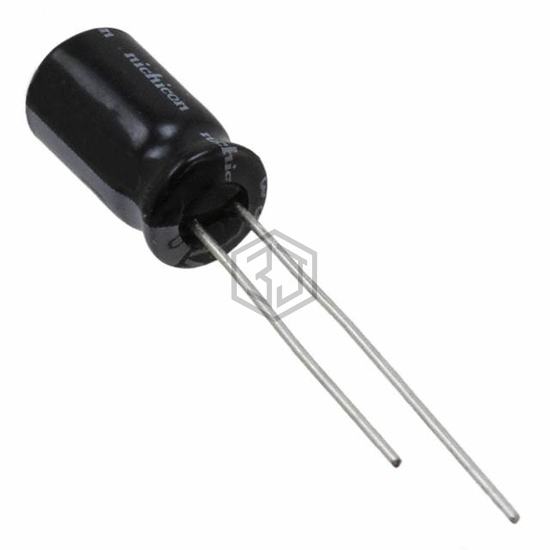

UVY2A220MED is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 8,217
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 93 mA @ 120 Hz |
| Ripple Current @ High Frequency | 186 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY2A220MED is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ1K220MED1TA | Nichicon | CAP ALUM 22UF 20% 80V RADIAL | 79% | View |
| UPV1V220MFD1TA | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 67% | View |
| UVZ1H220MDH | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 64% | View |
| SEK220M035ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 35V RADIAL | 60% | View |
| EEA-GA1H220H | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 59% | View |
| UKT1V220MDD1TD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 59% | View |
Submit your RFQ for UVY2A220MED and get a quote within 24 hours.
