Panasonic Electronic Components

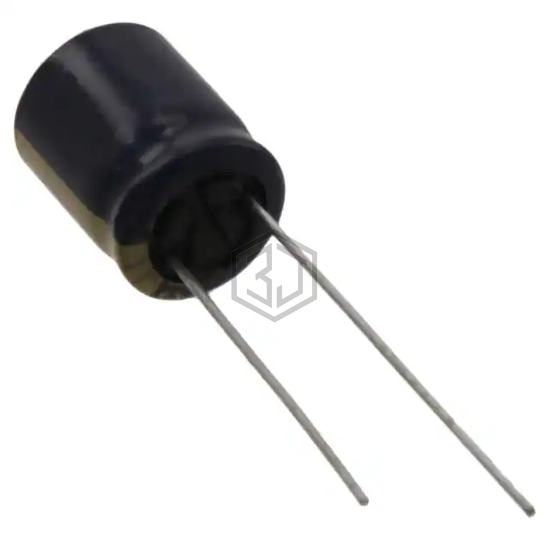

CAP ALUM 560UF 20% 10V RADIAL
EEU-FC1A561 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 76
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 566.3 mA @ 120 Hz |
| Ripple Current @ High Frequency | 755 mA @ 100 kHz |
| Impedance | 90 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1A561MPD6 | Nichicon | CAP ALUM 560UF 20% 10V RADIAL | 96% | View |
| RXJ561M1ABK-1016S | Surge | CAP ALUM 10V POLAR | 85% | View |
| RXK561M1CBK-1016S | Surge | CAP ALUM 16V POLAR | 78% | View |
| UPW0J561MPD1TA | Nichicon | CAP ALUM 560UF 20% 6.3V RADIAL | 72% | View |
| 601D567G060GL3 | Vishay Sprague | CAP ALUM 560UF 60V AXIAL | 56% | View |
| EEU-FK1E561L | Panasonic Electronic Components | CAP ALUM 560UF 20% 25V RADIAL TH | 53% | View |
Submit your RFQ for EEU-FC1A561 and get a quote within 24 hours.
