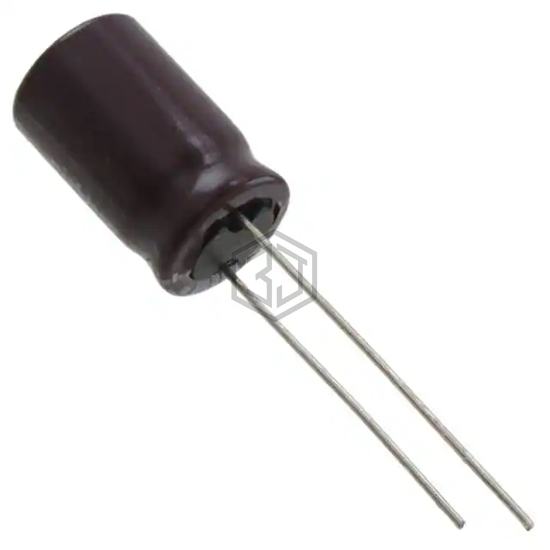

CAP ALUM 560UF 20% 10V RADIAL
UPM1A561MPD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 5,142
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 570 mA @ 120 Hz |
| Ripple Current @ High Frequency | 700 mA @ 10 kHz |
| Impedance | 110 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1A561MPD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1A561 | Panasonic Electronic Components | CAP ALUM 560UF 20% 10V RADIAL | 96% | View |
| RXK561M1CBK-0820S | Surge | CAP ALUM 16V POLAR | 87% | View |
| RXK561M0JBK-1012S | Surge | CAP ALUM 6.3V POLAR | 85% | View |
| 601D567G060GL3 | Vishay Sprague | CAP ALUM 560UF 60V AXIAL | 56% | View |
| ELXV630EC3561MK40S | United Chemi-Con | CAP ALUM 560UF 20% 63V RADIAL | 55% | View |
| B41888C5567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 25V RADIAL | 51% | View |
Submit your RFQ for UPM1A561MPD6 and get a quote within 24 hours.
