Panasonic Electronic Components
CAP ALUM 68UF 20% 200V RADIAL

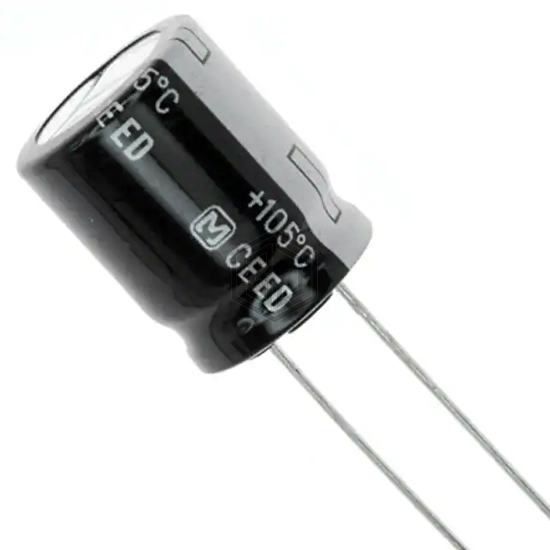

EEU-ED2D680SB is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 4,621
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 400 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPB2D680MHD1TO | Nichicon | CAP ALUM 68UF 20% 200V RADIAL | 92% | View |
| EEU-EB2V680SB | Panasonic Electronic Components | CAP ALUM 68UF 20% 350V RADIAL TH | 76% | View |
| UPB2G680MHD | Nichicon | CAP ALUM 68UF 20% 400V RADIAL | 74% | View |
| LGN2H680MELZ30 | Nichicon | CAP ALUM 68UF 20% 500V SNAP | 66% | View |
| LAKW6680MELA25 | Nichicon | CAP ALUM 68UF 20% 420V SNAP | 60% | View |
| VHT68M10 | NTE Electronics, Inc | CAP ALUM 68UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for EEU-ED2D680SB and get a quote within 24 hours.
