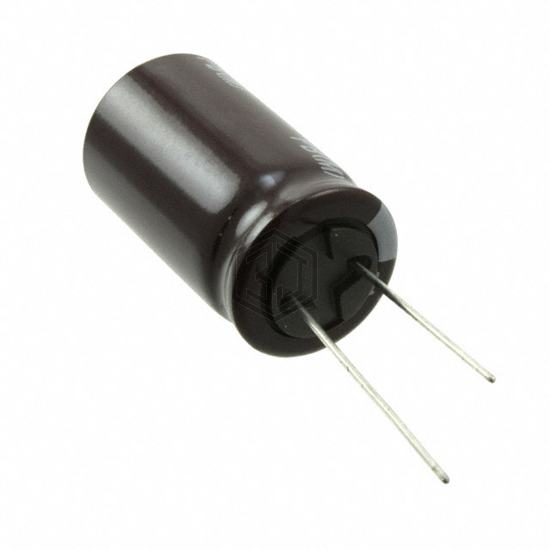

CAP ALUM 68UF 20% 400V RADIAL
UPB2G680MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 4,728
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 500 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2G680MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EPAG451ELL680MU40S | United Chemi-Con | CAP ALUM 68UF 20% 450V RADIAL | 94% | View |
| 450CXW68MEFC18X23.5 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 92% | View |
| SLP680M450C1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 68UF 20% 450V SNAP | 89% | View |
| EEU-ED2D680SB | Panasonic Electronic Components | CAP ALUM 68UF 20% 200V RADIAL | 74% | View |
| EKMQ401ELL680MLN3S | United Chemi-Con | CAP ALUM 68UF 20% 400V RADIAL | 62% | View |
| 672D686H100EK5C | Vishay Sprague | CAP ALUM 68UF 100V RADIAL | 56% | View |
Submit your RFQ for UPB2G680MHD and get a quote within 24 hours.
