Panasonic Electronic Components

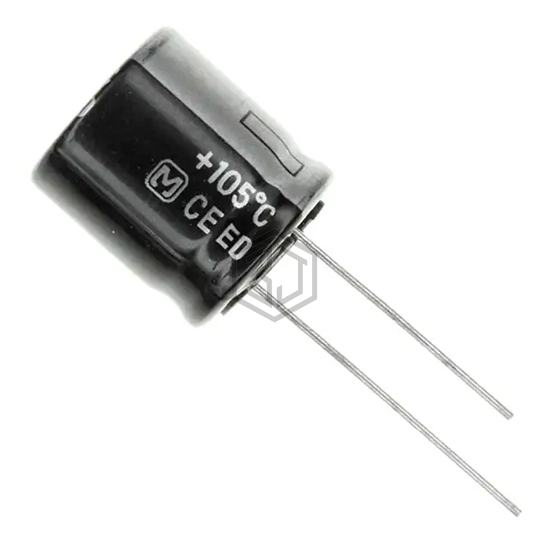

CAP ALUM 100UF 20% 200V RADIAL
EEU-ED2D101SB is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 5,220
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 576 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.28 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214262101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 200V RADIAL | 94% | View |
| ESG107M160AM7AA | KEMET | CAP ALUM RAD 105C | 76% | View |
| LGR2G101MELZ35 | Nichicon | CAP ALUM 100UF 20% 400V SNAP | 68% | View |
| LGR2W101MELB30 | Nichicon | CAP ALUM 100UF 20% 450V SNAP | 68% | View |
| ECA-2DHG101B | Panasonic Electronic Components | CAP ALUM 100UF 20% 200V RADIAL | 65% | View |
| 250PX100MEFCGC16X25 | Rubycon | CAP ALUM 100UF 20% 250V RADIAL | 52% | View |
Submit your RFQ for EEU-ED2D101SB and get a quote within 24 hours.
