CAP ALUM 100UF 20% 250V RADIAL

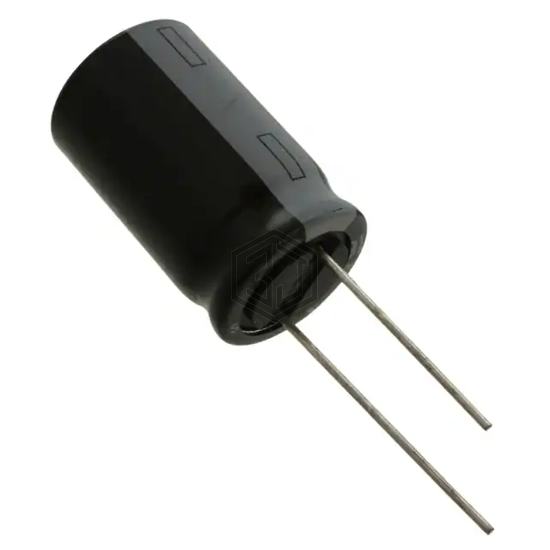

250PX100MEFCGC16X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 2,209
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 310 mA @ 120 Hz |
| Ripple Current @ High Frequency | 372 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214262101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 200V RADIAL | 76% | View |
| UVZ2C101MHD1AA | Nichicon | CAP ALUM 160V POLAR | 76% | View |
| UH063M101G16PE50S00A | Suscon | CAP ALUM 100UF 20% 63V RADIAL TH | 72% | View |
| UBW1H101MPD1TD | Nichicon | CAP ALUM 100UF 20% 50V RADIAL | 67% | View |
| MAL214651101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 67% | View |
| 63YXF100MEFCCR10X12.5 | Rubycon | CAP ALUM 100UF 20% 63V RADIAL | 64% | View |
Submit your RFQ for 250PX100MEFCGC16X25 and get a quote within 24 hours.
