Panasonic Electronic Components

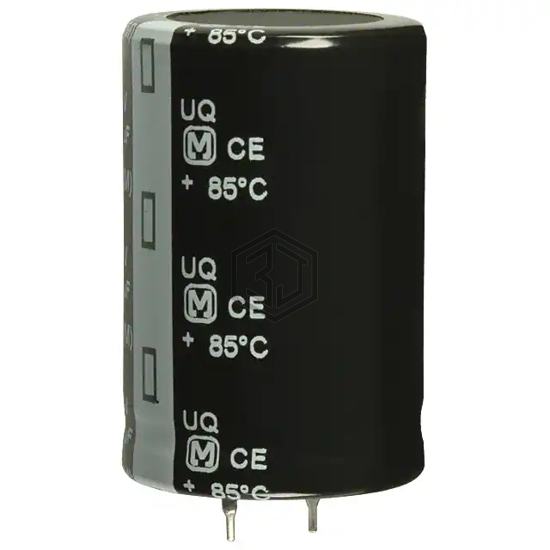

CAP ALUM 470UF 20% 450V SNAP
EET-UQ2W471DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 8,827
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 423mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.53 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.542 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-UQ2W471DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LLG2W471MELB40 | Nichicon | CAP ALUM 470UF 20% 450V SNAP | 96% | View |
| MAL225729471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 500V SNAP | 96% | View |
| ESMH401VNN471MA40W | United Chemi-Con | CAP ALUM 470UF 20% 400V SNAP | 94% | View |
| SLPX471M385H7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 385V SNAP | 91% | View |
| 381LR471M250J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 250V SNAP | 68% | View |
| EEU-FS1K471L | Panasonic Electronic Components | CAP ALUM 470UF 20% 80V RADIAL | 57% | View |
Submit your RFQ for EET-UQ2W471DA and get a quote within 24 hours.
