Panasonic Electronic Components

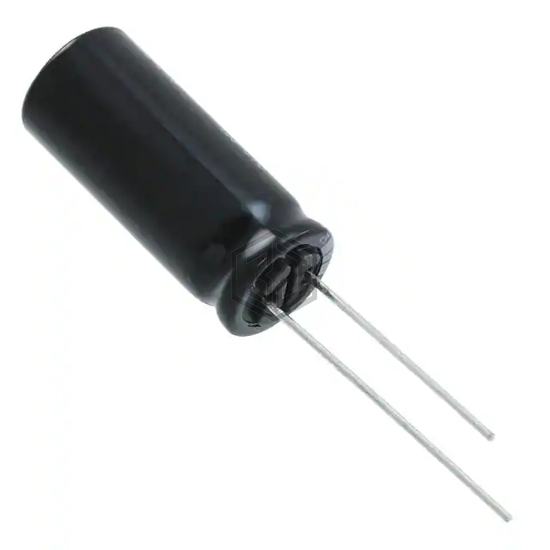

CAP ALUM 470UF 20% 80V RADIAL
EEU-FS1K471L is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 4,866
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.65 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.2 A @ 100 kHz |
| Impedance | 30 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216030471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 95% | View |
| EGXE630ELL471MM25S | United Chemi-Con | CAP ALUM 470UF 20% 63V RADIAL | 85% | View |
| 220MXC470MEFCSN25X30 | Rubycon | CAP ALUM 470UF 20% 220V SNAP | 76% | View |
| 381LR471M250J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 250V SNAP | 72% | View |
| EKZE350ETD471MJ20S | United Chemi-Con | CAP ALUM 470UF 20% 35V RADIAL | 62% | View |
| MAL204868471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 53% | View |
Submit your RFQ for EEU-FS1K471L and get a quote within 24 hours.
