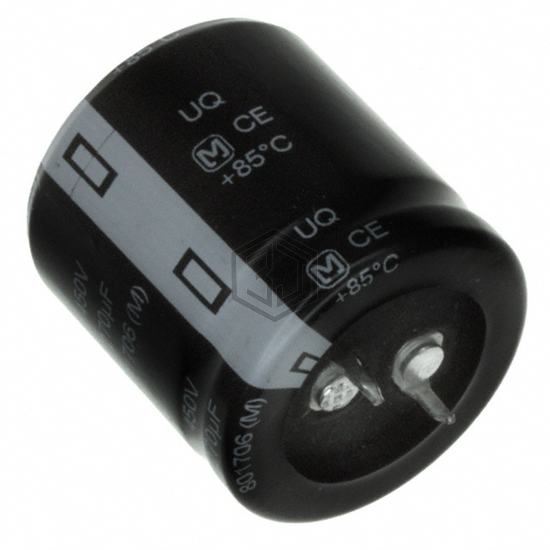

Panasonic Electronic Components
CAP ALUM 270UF 20% 450V SNAP
EET-UQ2W271KA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 270UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 9,073
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 737mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.492 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-UQ2W271KA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43541A6277M000 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 500V SNAP | 92% | View |
| B43601B9277M82 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 400V SNAP | 92% | View |
| ELXS421VSN271MA25S | United Chemi-Con | CAP ALUM 270UF 20% 420V SNAP | 86% | View |
| LGNW6271MELB30 | Nichicon | CAP ALUM 270UF 20% 420V SNAP | 81% | View |
| LKX2G271MESB35 | Nichicon | CAP ALUM 270UF 20% 400V SNAP | 79% | View |
| LKX2G271MESA45 | Nichicon | CAP ALUM 270UF 20% 400V SNAP | 79% | View |
Submit your RFQ for EET-UQ2W271KA and get a quote within 24 hours.
