Panasonic Electronic Components

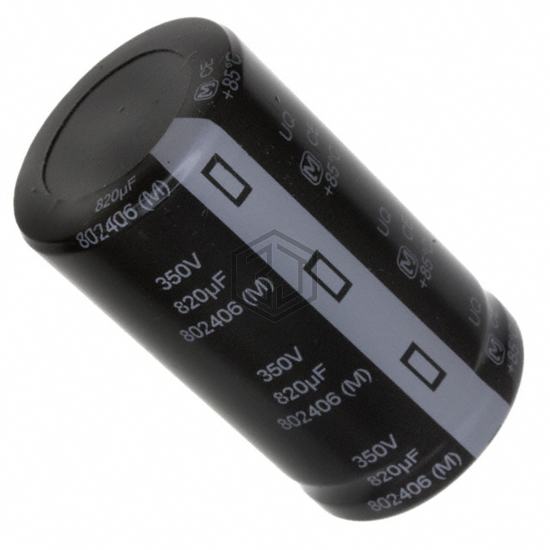

CAP ALUM 820UF 20% 350V SNAP
EET-UQ2V821KA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 820UF 20% 350V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Snap-In.
In Stock: 7,018
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 243mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.55 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-UQ2V821KA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400USG820MEFCSN35X50 | Rubycon | CAP ALUM 820UF 20% 400V SNAP | 96% | View |
| LGW2E821MELA50 | Nichicon | CAP ALUM 820UF 20% 250V SNAP | 88% | View |
| B43520A3827M000 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 385V RADIAL | 88% | View |
| 382LX821M450N062 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 450V SNAP | 84% | View |
| 400VXH820MEFCSN35X50 | Rubycon | CAP ALUM 820UF 20% 400V SNAP | 83% | View |
| 400VXH820MEFC35X50 | Rubycon | CAP ALUM 820UF 20% 400V SNAP | 83% | View |
Submit your RFQ for EET-UQ2V821KA and get a quote within 24 hours.
