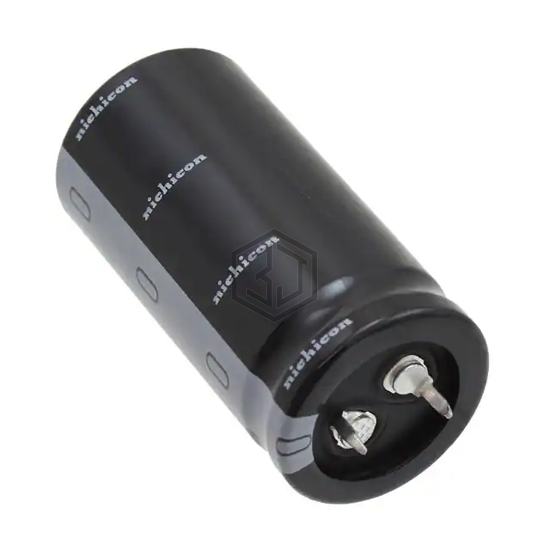

CAP ALUM 820UF 20% 250V SNAP
LGW2E821MELA50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 1,414
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.5 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504B2827M82 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 250V SNAP | 93% | View |
| B43504D2827M87 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 250V SNAP | 91% | View |
| B43252E2827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 250V SNAP | 90% | View |
| B43508G2827M87 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 250V SNAP | 81% | View |
| B43508A2827M2 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 200V SNAP | 77% | View |
| LKX2D821MESB35 | Nichicon | CAP ALUM 820UF 20% 200V SNAP | 75% | View |
Submit your RFQ for LGW2E821MELA50 and get a quote within 24 hours.
