Panasonic Electronic Components

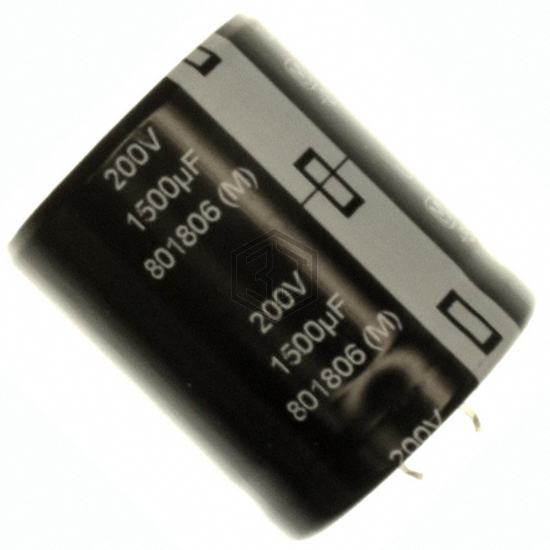

CAP ALUM 1500UF 20% 200V SNAP
EET-UQ2D152KA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1500UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,819
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 144mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.87 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.418 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-UQ2D152KA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LLG2Z152MELA45 | Nichicon | CAP ALUM 1500UF 20% 180V SNAP | 91% | View |
| B43508E2158M80 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 250V SNAP | 82% | View |
| B43508E2158M60 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 250V SNAP | 82% | View |
| MAL215869152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 100V SNAP | 58% | View |
| MAL205879152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 100V SNAP | 57% | View |
| LKS2A152MESB | Nichicon | CAP ALUM 1500UF 20% 100V SNAP | 57% | View |
Submit your RFQ for EET-UQ2D152KA and get a quote within 24 hours.
