CAP ALUM 1500UF 20% 180V SNAP

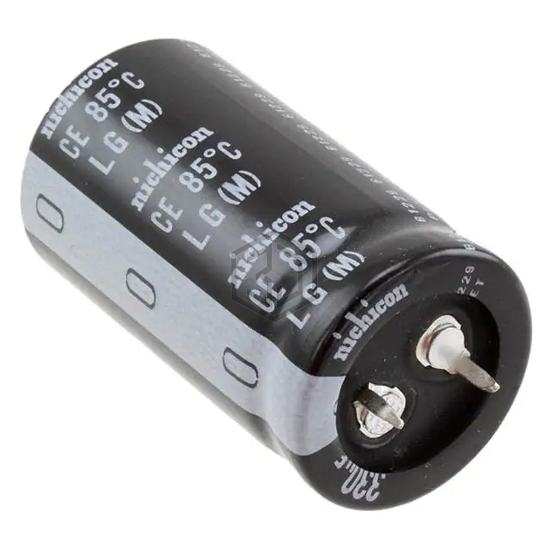

LLG2Z152MELA45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 2,055
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.95 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508E2158M80 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 250V SNAP | 83% | View |
| B43508E2158M60 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 250V SNAP | 83% | View |
| MAL215869152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 100V SNAP | 68% | View |
| MAL205879152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 100V SNAP | 66% | View |
| LKS2A152MESB | Nichicon | CAP ALUM 1500UF 20% 100V SNAP | 66% | View |
| 53D152F100JL6 | Vishay Sprague | CAP ALUM 1500UF 100V AXIAL | 62% | View |
Submit your RFQ for LLG2Z152MELA45 and get a quote within 24 hours.
