Panasonic Electronic Components
CAP ALUM 390UF 20% 450V SNAP

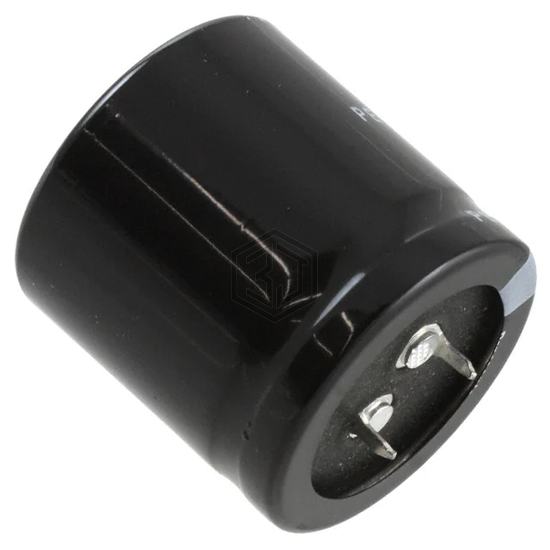

EET-HD2W391LJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 390UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 1,793
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.17 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2W391LJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMM421VSN391MR45S | United Chemi-Con | CAP ALUM 390UF 20% 420V SNAP | 97% | View |
| HU2G391MCYS6WPEC | AIC tech Inc. | CAP ALUM 390UF 20% 400V SNAP | 92% | View |
| 397LMX400M2DG | Cornell Dubilier / Illinois Capacitor | CAP ALUM 390UF 20% 400V SNAP | 90% | View |
| B43544B5397M000 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 450V SNAP | 89% | View |
| LGU2E391MELY | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 80% | View |
| LGX2E391MELA30 | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 80% | View |
Submit your RFQ for EET-HD2W391LJ and get a quote within 24 hours.
