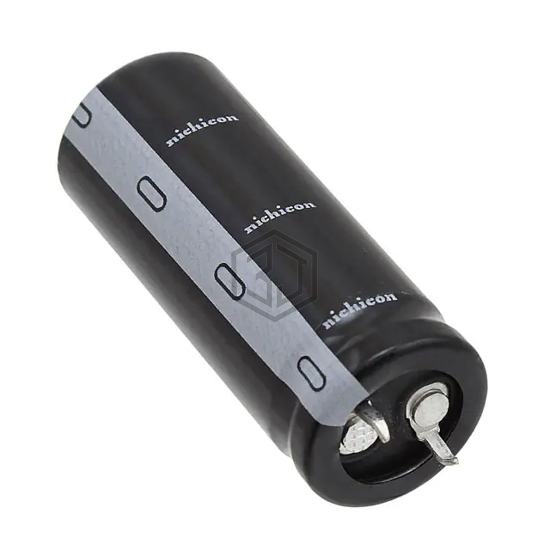

CAP ALUM 390UF 20% 250V SNAP
LGU2E391MELY is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.45 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.175 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX391M200J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 200V SNAP | 86% | View |
| B43508A2397M82 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 200V SNAP | 84% | View |
| MAL225952391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 200V SNAP | 83% | View |
| EKXJ221ELL391MM40S | United Chemi-Con | CAP ALUM 390UF 20% 220V RADIAL | 82% | View |
| B43504A5397M007 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 450V SNAP | 69% | View |
| B43544B5397M000 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 450V SNAP | 63% | View |
Submit your RFQ for LGU2E391MELY and get a quote within 24 hours.
