Panasonic Electronic Components

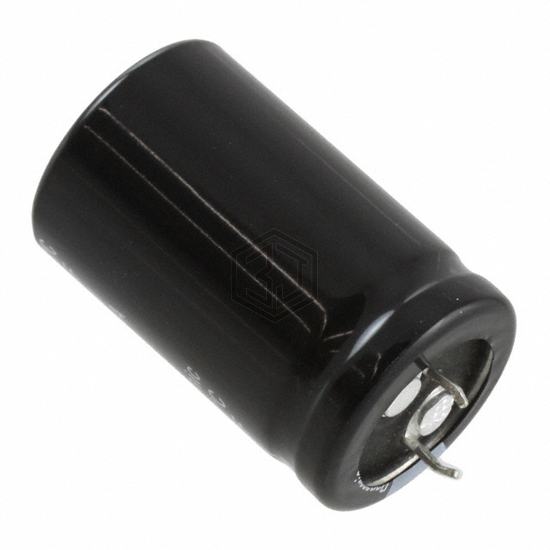

CAP ALUM 120UF 20% 450V SNAP
EET-HD2W121HJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 120UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 3,739
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 720 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.008 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2W121HJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LDQ2G121MERZGA | Nichicon | CAP ALUM 120UF 20% 400V RADIAL | 94% | View |
| UPT2G121MHD | Nichicon | CAP ALUM 120UF 20% 400V RADIAL | 93% | View |
| 450CXW120MEFR18X31.5 | Rubycon | CAP ALUM 120UF 20% 450V RADIAL | 93% | View |
| 350MXC120MEFCSN25X25 | Rubycon | CAP ALUM 120UF 20% 350V SNAP | 90% | View |
| 420VXG120MEFC25X25 | Rubycon | CAP ALUM 120UF 20% 420V SNAP | 86% | View |
| 381LR121M400J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 120UF 20% 400V SNAP | 79% | View |
Submit your RFQ for EET-HD2W121HJ and get a quote within 24 hours.
