Panasonic Electronic Components
CAP ALUM 150UF 20% 420V SNAP

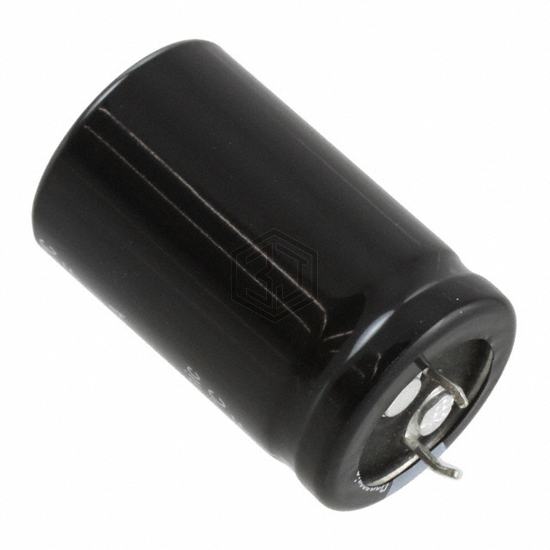

EET-HD2S151JJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 150UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 6,286
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 840 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.176 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2S151JJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508B5157M000 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 96% | View |
| LASW6151MELZ40 | Nichicon | CAP ALUM 150UF 20% 420V SNAP | 94% | View |
| LGU2F151MELZ | Nichicon | CAP ALUM 150UF 20% 315V SNAP | 91% | View |
| MAL205978151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 385V SNAP | 91% | View |
| EKXL401ELL151MM35S | United Chemi-Con | CAP ALUM 150UF 20% 400V RAD TH | 82% | View |
| UCS2C151MHD1TN | Nichicon | CAP ALUM 150UF 20% 160V RADIAL | 65% | View |
Submit your RFQ for EET-HD2S151JJ and get a quote within 24 hours.
