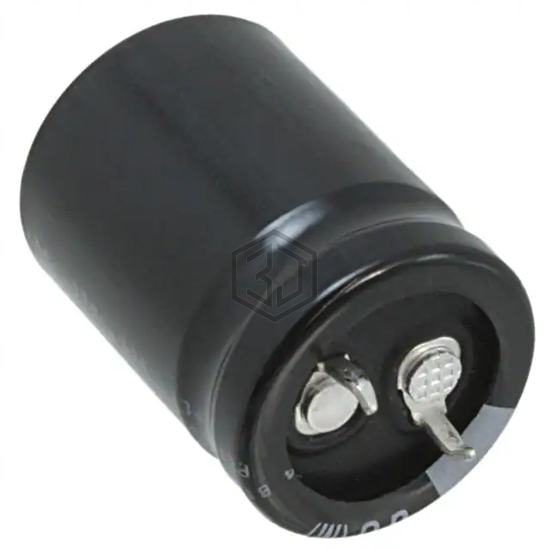

CAP ALUM 150UF 20% 315V SNAP
LGU2F151MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 6,960
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 820 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1726 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400KXW150MEFC16X40 | Rubycon | CAP ALUM 150UF 20% 400V RADIAL | 91% | View |
| LASW6151MELB25 | Nichicon | CAP ALUM 150UF 20% 420V SNAP | 86% | View |
| MAL205978151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 385V SNAP | 86% | View |
| MAL216358151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 385V SNAP | 82% | View |
| UCS2C151MHD1TN | Nichicon | CAP ALUM 150UF 20% 160V RADIAL | 65% | View |
| 35ZL150MTA8X11.5 | Rubycon | CAP ALUM 150UF 20% 35V RADIAL | 50% | View |
Submit your RFQ for LGU2F151MELZ and get a quote within 24 hours.
