Panasonic Electronic Components
CAP ALUM 680UF 20% 400V SNAP

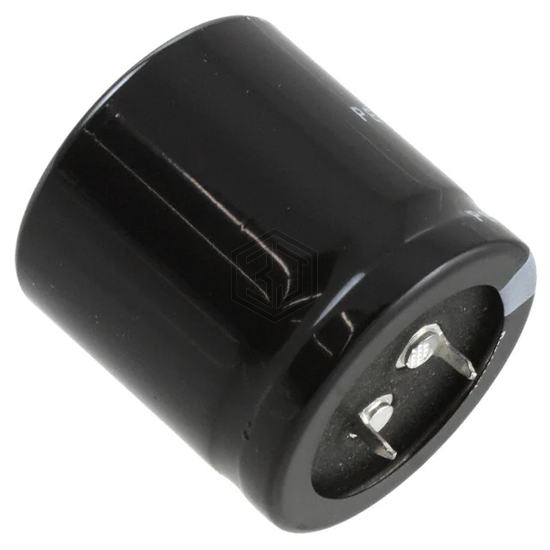

EET-HD2G681LJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 680UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 1,847
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.968 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2G681LJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ351VSN681MR50S | United Chemi-Con | CAP ALUM 680UF 20% 350V SNAP | 86% | View |
| LAR2E681MELZ50 | Nichicon | CAP ALUM 680UF 20% 250V SNAP | 77% | View |
| EEU-FR1H681L | Panasonic Electronic Components | CAP ALUM 680UF 20% 50V RADIAL | 75% | View |
| 180MXG680MEFCSN25X30 | Rubycon | CAP ALUM 680UF 20% 180V SNAP | 74% | View |
| LGU2Z681MELB | Nichicon | CAP ALUM 680UF 20% 180V SNAP | 72% | View |
| 25ZLG680MEFC12.5X16 | Rubycon | CAP ALUM 680UF 20% 25V RADIAL | 58% | View |
Submit your RFQ for EET-HD2G681LJ and get a quote within 24 hours.
