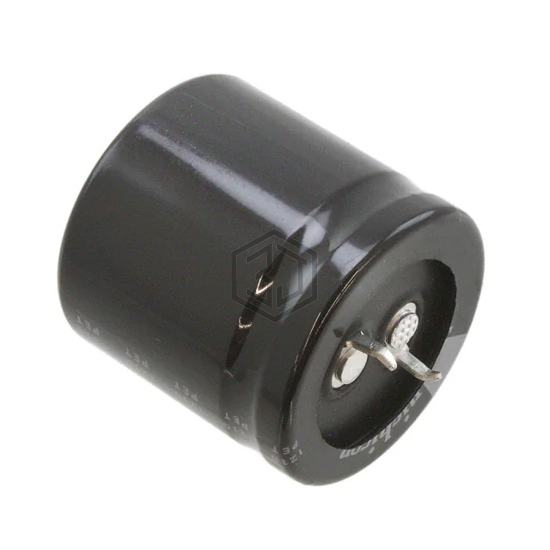

CAP ALUM 680UF 20% 180V SNAP
LGU2Z681MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 6,939
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.67 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 180MXG680MEFCSN25X30 | Rubycon | CAP ALUM 680UF 20% 180V SNAP | 98% | View |
| LAR2E681MELZ50 | Nichicon | CAP ALUM 680UF 20% 250V SNAP | 88% | View |
| EEU-FR1H681L | Panasonic Electronic Components | CAP ALUM 680UF 20% 50V RADIAL | 68% | View |
| B43640A9687M007 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 400V SNAP | 62% | View |
| B41859C5687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 25V RADIAL | 61% | View |
| KY35VB681M12X20LL | United Chemi-Con | CAP ALUM 680UF 20% 35V RADIAL | 60% | View |
