Panasonic Electronic Components
CAP ALUM 470UF 20% 400V SNAP

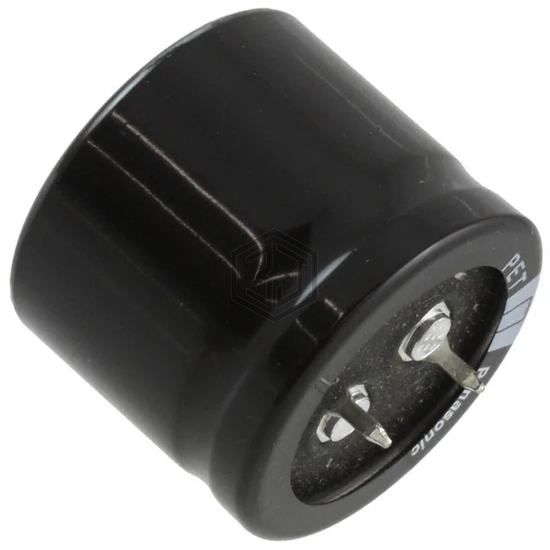

EET-HD2G471KJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 7,218
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.68 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.352 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-HD2G471KJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43526B5477M060 | EPCOS - TDK Electronics | SOLDER PIN 470UF 450V | 85% | View |
| 381LX471M315K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 315V SNAP | 84% | View |
| 475MXK470MEFCSN25X60 | Rubycon | CAP ALUM 470UF 20% 475V SNAP | 83% | View |
| LGU2P471MELY | Nichicon | CAP ALUM 470UF 20% 220V SNAP | 76% | View |
| LGX2D471MELA25 | Nichicon | CAP ALUM 470UF 20% 200V SNAP | 72% | View |
| 50ZLH470MEFCG412.5X20 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 58% | View |
Submit your RFQ for EET-HD2G471KJ and get a quote within 24 hours.
