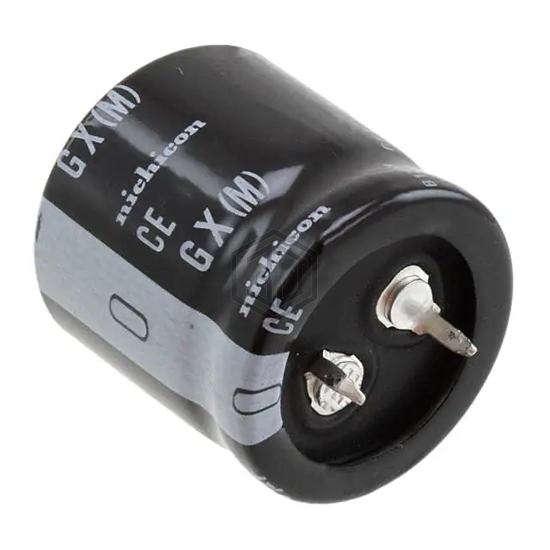

CAP ALUM 470UF 20% 200V SNAP
LGX2D471MELA25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 2,178
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.39 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.085 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGJ2Z471MELC | Nichicon | CAP ALUM 470UF 20% 180V SNAP | 96% | View |
| LGU2P471MELY | Nichicon | CAP ALUM 470UF 20% 220V SNAP | 95% | View |
| 381LX471M315K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 315V SNAP | 85% | View |
| ELXM3B1VSN471MR45S | United Chemi-Con | CAP ALUM 470UF 20% 315V SNAP | 75% | View |
| EKY-101EC5471MLN3S | United Chemi-Con | CAP ALUM 470UF 20% 100V RADIAL | 66% | View |
| 50ZLH470MEFCG412.5X20 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 65% | View |
Submit your RFQ for LGX2D471MELA25 and get a quote within 24 hours.
