Panasonic Electronic Components

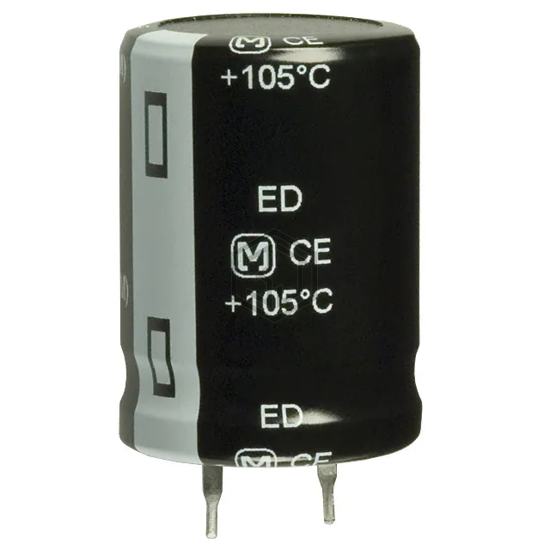

CAP ALUM 68UF 20% 450V SNAP
EET-ED2W680BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 4,480
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 1.95Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 760 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.08 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2W680BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450CXW68MEFR18X25 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 100% | View |
| UCY2G680MHD3 | Nichicon | CAP ALUM 68UF 20% 400V RADIAL | 88% | View |
| UPH2W680MHD | Nichicon | CAP ALUM 68UF 20% 450V RADIAL | 87% | View |
| 400MXC68MEFC22X25 | Rubycon | CAP ALUM 68UF 20% 400V SNAP | 78% | View |
| EEU-FS2A680 | Panasonic Electronic Components | CAP ALUM 68UF 20% 100V RADIAL | 72% | View |
| 200BXW68MEFR12.5X20 | Rubycon | CAP ALUM 68UF 20% 200V RADIAL | 65% | View |
Submit your RFQ for EET-ED2W680BA and get a quote within 24 hours.
