Panasonic Electronic Components

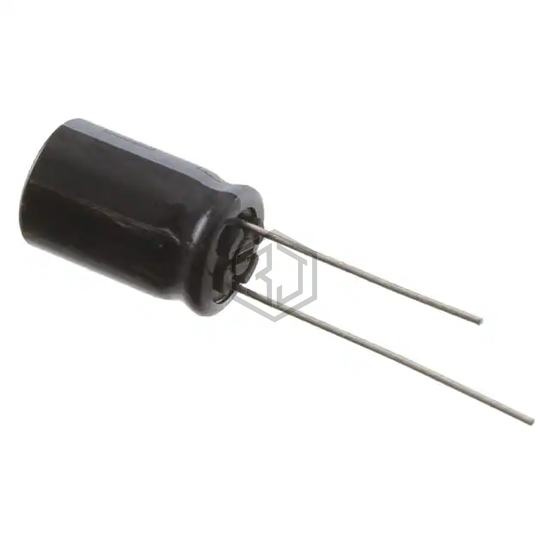

CAP ALUM 68UF 20% 100V RADIAL
EEU-FS2A680 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,762
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 651 mA @ 120 Hz |
| Ripple Current @ High Frequency | 930 mA @ 100 kHz |
| Impedance | 72 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100ZLH68MEFCT810X16 | Rubycon | CAP ALUM 68UF 20% 100V RADIAL | 100% | View |
| 200BXW68MEFR12.5X20 | Rubycon | CAP ALUM 68UF 20% 200V RADIAL | 66% | View |
| UCY2G680MHD3 | Nichicon | CAP ALUM 68UF 20% 400V RADIAL | 65% | View |
| MAL225929689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 500V SNAP | 60% | View |
| UCS2G680MNY9 | Nichicon | CAP ALUM 68UF 20% 400V RADIAL | 56% | View |
| 450CXW68MEFR18X25 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 56% | View |
Submit your RFQ for EEU-FS2A680 and get a quote within 24 hours.
