Panasonic Electronic Components

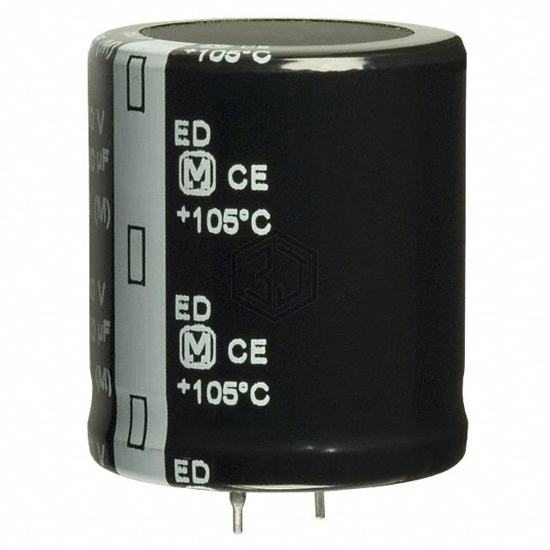

CAP ALUM 390UF 20% 450V SNAP
EET-ED2W391EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 390UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 4,901
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 340mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.97 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.82 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2W391EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504A5397M007 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 450V SNAP | 97% | View |
| 381LR391M400J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 400V SNAP | 93% | View |
| LGX2W391MELB50 | Nichicon | CAP ALUM 390UF 20% 450V SNAP | 92% | View |
| EKMW421VSN391MQ50S | United Chemi-Con | CAP ALUM 390UF 20% 420V SNAP | 91% | View |
| LGU2E391MELY | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 69% | View |
| 381LX391M200J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 200V SNAP | 58% | View |
Submit your RFQ for EET-ED2W391EA and get a quote within 24 hours.
