Panasonic Electronic Components
CAP ALUM 330UF 20% 450V SNAP

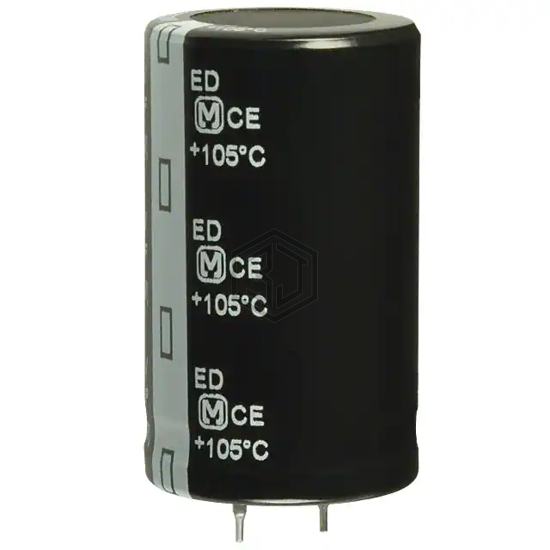

EET-ED2W331DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 330UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 3,353
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 402mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.85 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.64 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2W331DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450MXG330MEFCSN30X40 | Rubycon | CAP ALUM 330UF 20% 450V SNAP | 97% | View |
| EKMH401VNN331MA35W | United Chemi-Con | CAP ALUM 330UF 20% 400V SNAP | 81% | View |
| LQS2V331MELB30 | Nichicon | CAP ALUM 330UF 20% 350V SNAP | 72% | View |
| LGN2V331MELZ45 | Nichicon | CAP ALUM 330UF 20% 350V SNAP | 72% | View |
| EKMQ251VSN331MQ25S | United Chemi-Con | CAP ALUM 330UF 20% 250V SNAP | 63% | View |
| LGJ2E331MELC | Nichicon | CAP ALUM 330UF 20% 250V SNAP | 61% | View |
Submit your RFQ for EET-ED2W331DA and get a quote within 24 hours.
