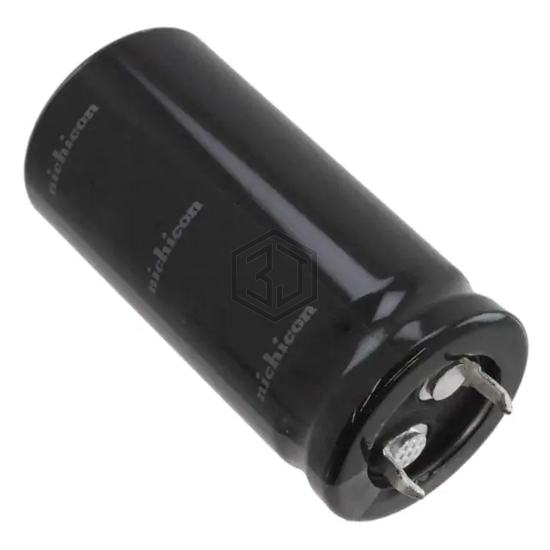

CAP ALUM 330UF 20% 350V SNAP
LGN2V331MELZ45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 350V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can - Snap-In.
In Stock: 9,818
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.716 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LQS2V331MELB30 | Nichicon | CAP ALUM 330UF 20% 350V SNAP | 100% | View |
| EKMH401VNN331MA35W | United Chemi-Con | CAP ALUM 330UF 20% 400V SNAP | 90% | View |
| EKMQ251VSN331MQ25S | United Chemi-Con | CAP ALUM 330UF 20% 250V SNAP | 89% | View |
| 381LX331M200A202 | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 200V SNAP | 78% | View |
| 450MXG330MEFCSN30X40 | Rubycon | CAP ALUM 330UF 20% 450V SNAP | 75% | View |
| SEK331M100ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 100V RADIAL | 56% | View |
Submit your RFQ for LGN2V331MELZ45 and get a quote within 24 hours.
