Panasonic Electronic Components
CAP ALUM 150UF 20% 450V SNAP

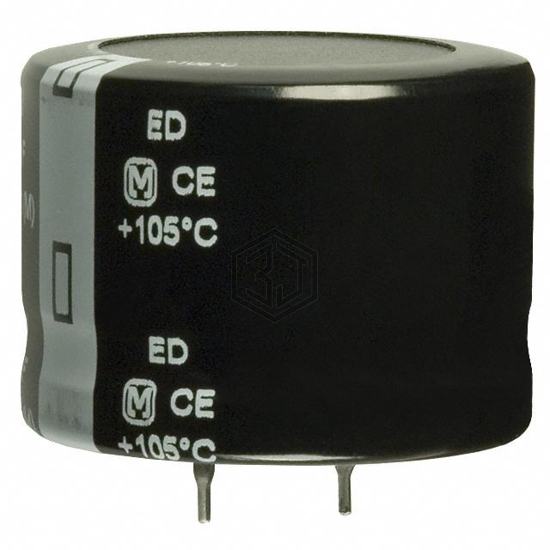

EET-ED2W151EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 150UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 5,889
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 884mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.07 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.53 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2W151EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 500MXH150MEFC35X25 | Rubycon | CAP ALUM 150UF 20% 500V SNAP | 96% | View |
| 400HXW150MEFR14.5X45 | Rubycon | CAP ALUM 150UF 20% 400V RADIAL | 95% | View |
| 381LX151M400H032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 400V SNAP | 92% | View |
| UCY2G151MHD | Nichicon | CAP ALUM 150UF 20% 400V RADIAL | 88% | View |
| UCY2V151MHD | Nichicon | CAP ALUM 150UF 20% 350V RADIAL | 84% | View |
| EKMH451VNN151MR30W | United Chemi-Con | CAP ALUM 150UF 20% 450V SNAP | 82% | View |
Submit your RFQ for EET-ED2W151EA and get a quote within 24 hours.
