Panasonic Electronic Components

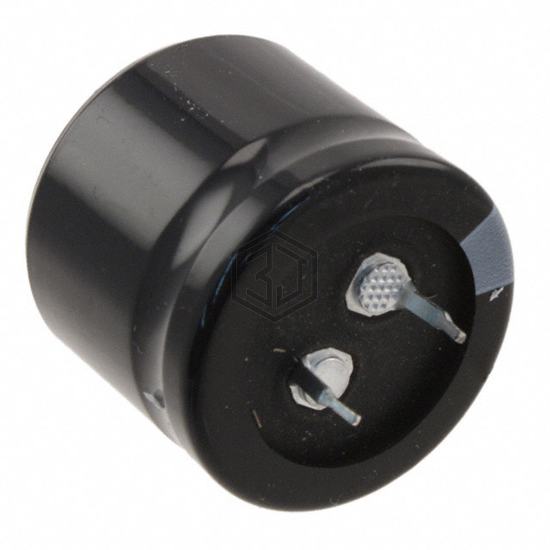

CAP ALUM 680UF 20% 200V SNAP
EET-ED2D681DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 680UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 6,630
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 219mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.42 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.45 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2D681DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216352681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 200V SNAP | 95% | View |
| B43508E2687M62 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 83% | View |
| 160MXC680MEFCSN22X40 | Rubycon | CAP ALUM 680UF 20% 160V SNAP | 79% | View |
| ELHS451VSN681MR60S | United Chemi-Con | CAP ALUM 680UF 20% 450V SNAP | 77% | View |
| 63ZLJ680M12.5X35 | Rubycon | CAP ALUM 680UF 20% 63V RADIAL TH | 67% | View |
| EEU-FM1E681 | Panasonic Electronic Components | CAP ALUM 680UF 20% 25V RADIAL | 59% | View |
Submit your RFQ for EET-ED2D681DA and get a quote within 24 hours.
