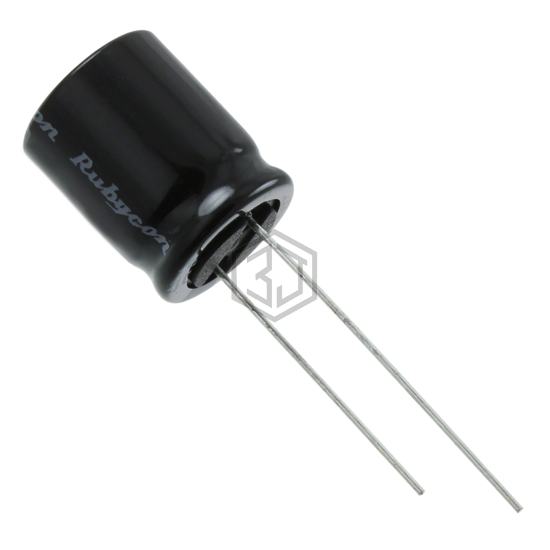

CAP ALUM 680UF 20% 63V RADIAL TH
63ZLJ680M12.5X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 680UF 20% 63V RADIAL TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,622
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.672 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.04 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214868681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 74% | View |
| 160MXC680MEFCSN22X40 | Rubycon | CAP ALUM 680UF 20% 160V SNAP | 74% | View |
| EEU-FM1E681 | Panasonic Electronic Components | CAP ALUM 680UF 20% 25V RADIAL | 70% | View |
| ELHS451VSN681MR60S | United Chemi-Con | CAP ALUM 680UF 20% 450V SNAP | 69% | View |
| MAL216352681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 200V SNAP | 64% | View |
| KY35VB681M10X30LL | United Chemi-Con | CAP ALUM 680UF 20% 35V RADIAL | 62% | View |
Submit your RFQ for 63ZLJ680M12.5X35 and get a quote within 24 hours.
