Panasonic Electronic Components
CAP ALUM 1200UF 20% 200V SNAP

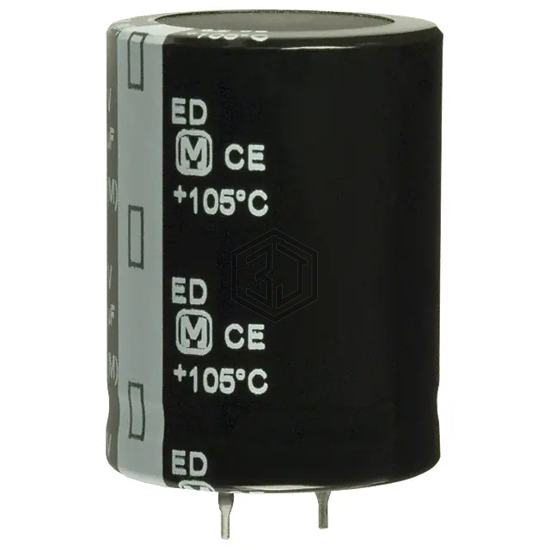

EET-ED2D122EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1200UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,370
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 124mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.13 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.47 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-ED2D122EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508A2128M62 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 200V SNAP | 92% | View |
| B43504A2128M007 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 250V SNAP | 90% | View |
| B43644B2128M067 | EPCOS - TDK Electronics | SNAP-IN 1200UF 200V | 90% | View |
| LGG2D122MELA45 | Nichicon | CAP ALUM 1200UF 20% 200V SNAP | 86% | View |
| 25ZLJ1200M10X25 | Rubycon | CAP ALUM 1200UF 20% 25V RADIAL | 55% | View |
| 35YXG1200MEFCG412.5X30 | Rubycon | CAP ALUM 1200UF 20% 35V RADIAL | 50% | View |
Submit your RFQ for EET-ED2D122EA and get a quote within 24 hours.
