CAP ALUM 1200UF 20% 35V RADIAL

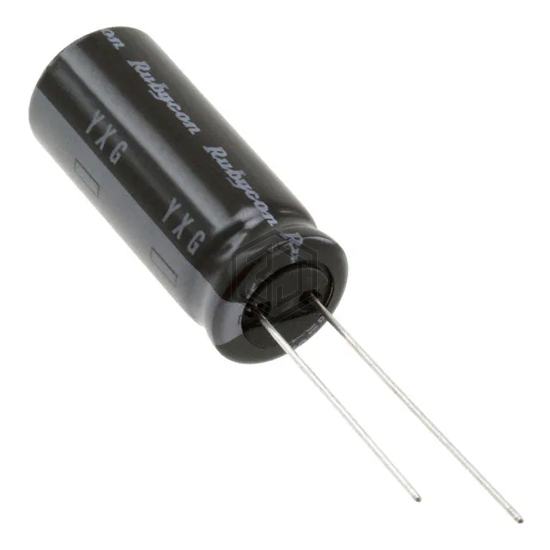

35YXG1200MEFCG412.5X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1200UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 5,518
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.59 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.65 A @ 100 kHz |
| Impedance | 24 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1V122MHD6AK | Nichicon | CAP ALUM 35V POLAR | 91% | View |
| 25ZLJ1200M10X25 | Rubycon | CAP ALUM 1200UF 20% 25V RADIAL | 87% | View |
| RZW122M1HBK-1825S | Surge | CAP ALUM 50V POLAR | 87% | View |
| UHW1E122MPD1TD | Nichicon | CAP ALUM 1200UF 20% 25V RADIAL | 85% | View |
| B41895B6128M | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 50V RADIAL | 83% | View |
| ESW128M016AH5AA | KEMET | CAP ALUM 1200UF 20% 16V RADIAL | 55% | View |
Submit your RFQ for 35YXG1200MEFCG412.5X30 and get a quote within 24 hours.
