Panasonic Electronic Components

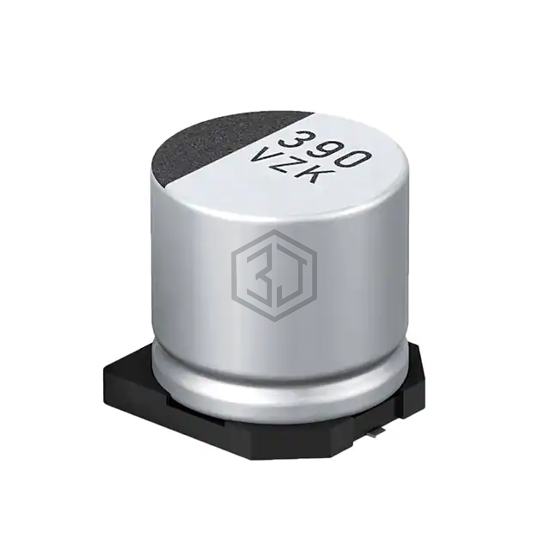

CAP ALUM POLY HYB 39UF 35V SMD
EEH-ZK1V390UR is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY HYB 39UF 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 5,021
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 100mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 112.5 mA @ 100 Hz |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| GYA1H330MCQ1GS | Nichicon | CAP ALUM POLY 33UF 20% 50V SMD | 64% | View |
| HHXC500ARA330MHA0G | United Chemi-Con | CAP ALUM POLY 33UF 20% 50V SMD | 60% | View |
| AHC0811470M050R | KYOCERA AVX | CAP ALUM POLY HYB 47UF 50V SMD | 56% | View |
| GYA1J330MCQ1GS | Nichicon | CAP ALUM POLY 33UF 20% 63V SMD | 55% | View |
| HHXC630ARA470MHA0G | United Chemi-Con | CAP ALUM POLY 47UF 20% 63V SMD | 54% | View |
| 80PFV39M10X10.5 | Rubycon | CAP ALUM POLY HYB 39UF 80V SMD | 53% | View |
Submit your RFQ for EEH-ZK1V390UR and get a quote within 24 hours.
