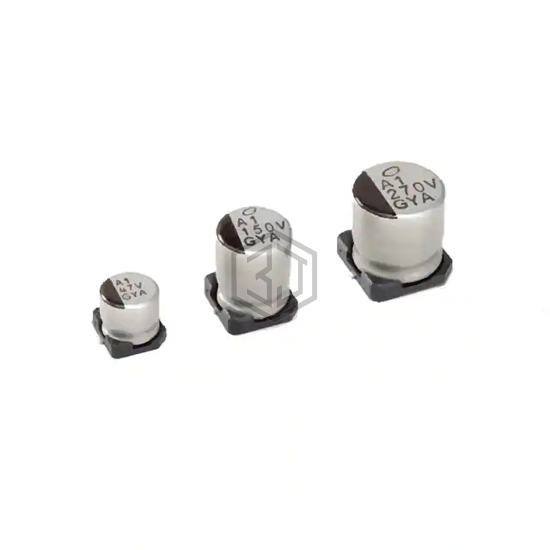

CAP ALUM POLY 33UF 20% 50V SMD
GYA1H330MCQ1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 33UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 3,139
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEH-ZC1H330XV | Panasonic Electronic Components | CAP ALUM POLY 33UF 20% 50V SMD | 100% | View |
| HHXC500ARA330MHA0G | United Chemi-Con | CAP ALUM POLY 33UF 20% 50V SMD | 96% | View |
| GYA1J330MCQ1GS | Nichicon | CAP ALUM POLY 33UF 20% 63V SMD | 90% | View |
| 63PFV33M8X10.5 | Rubycon | CAP ALUM POLY HYB 33UF 63V SMD | 90% | View |
| HHXC630ARA330MJA0G | United Chemi-Con | CAP ALUM POLY 33UF 20% 63V SMD | 83% | View |
| GYC1J330MCW1GS | Nichicon | CAP ALUM POL HY 33UF 20% 63V SMD | 73% | View |
Submit your RFQ for GYA1H330MCQ1GS and get a quote within 24 hours.
