Panasonic Electronic Components
CAP ALUM POLY 56UF 20% 25V SMD

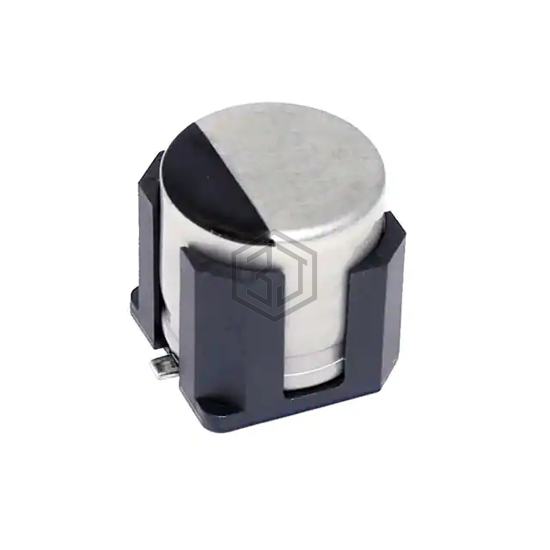

EEH-ZC1E560V is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 56UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 8,309
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 50mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 135 mA @ 100 Hz |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| GYA1E560MCQ1GS | Nichicon | CAP ALUM POLY 56UF 20% 25V SMD | 100% | View |
| HHXC250ARA560MF61G | United Chemi-Con | CAP ALUM POLY 56UF 20% 25V SMD | 100% | View |
| MAL218397602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY HYB 56UF 25V SMD | 90% | View |
| 25PHV56M6.3X6.1 | Rubycon | CAP ALUM POLY HYB 56UF 25V SMD | 74% | View |
| EEH-ZE1J560P | Panasonic Electronic Components | CAP ALUM POLY 56UF 20% 63V SMD | 73% | View |
| MAL218397804E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY HYB 56UF 63V SMD | 67% | View |
Submit your RFQ for EEH-ZC1E560V and get a quote within 24 hours.
