Panasonic Electronic Components
CAP ALUM POLY 56UF 20% 63V SMD

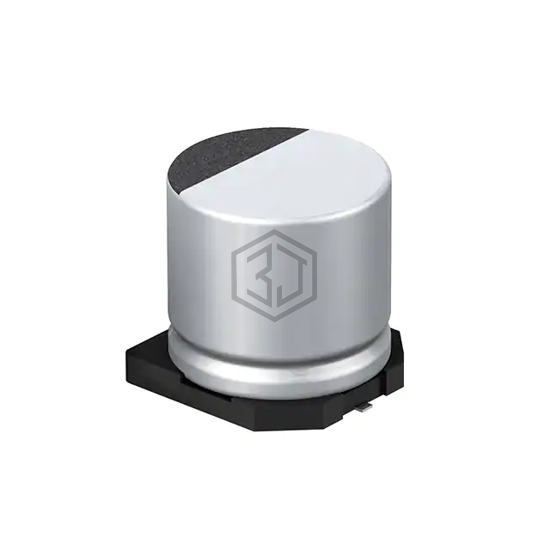

EEH-ZE1J560P is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 56UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 145°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 1,199
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 145°C |
| Operating Temperature | -55°C ~ 145°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 120 mA @ 100 Hz |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEH-ZE1J560V | Panasonic Electronic Components | CAP ALUM POLY 56UF 20% 63V SMD | 100% | View |
| EEH-ZF1J560V | Panasonic Electronic Components | CAP ALUM POLY HYB 56UF 63V SMD | 98% | View |
| EEH-ZF1J560P | Panasonic Electronic Components | CAP ALUM POLY HYB 56UF 63V SMD | 98% | View |
| EEH-ZF1H560P | Panasonic Electronic Components | CAP ALUM POLY HYB 56UF 50V SMD | 87% | View |
| EEH-ZF1H560V | Panasonic Electronic Components | CAP ALUM POLY HYB 56UF 50V SMD | 87% | View |
| EEH-ZE1J820V | Panasonic Electronic Components | CAP ALUM POLY 82UF 20% 63V SMD | 86% | View |
Submit your RFQ for EEH-ZE1J560P and get a quote within 24 hours.
