Panasonic Electronic Components
CAP ALUM 10000UF 20% 100V SCREW

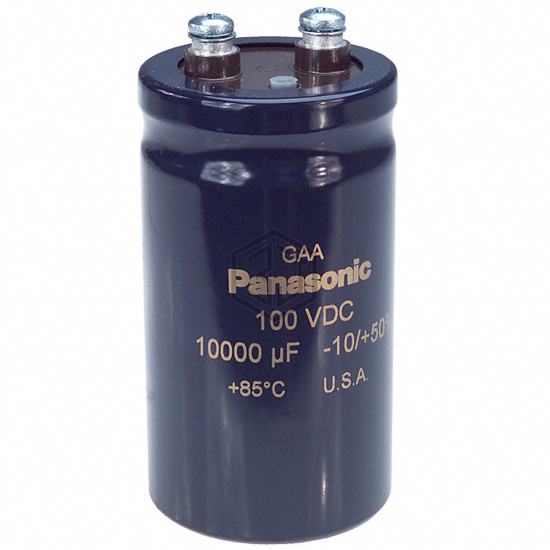

EEG-A2A103FHE is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10000UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,043
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 29mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.16 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 3.625" (92.08mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
EEG-A2A103FHE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D101HPN103MC79U | United Chemi-Con | CAP ALUM 10000UF 20% 100V SCREW | 86% | View |
| ALS80H103DB063 | KEMET | CAP ALUM 10000UF 20% 63V SCREW | 81% | View |
| LNT1K103MSE | Nichicon | CAP ALUM 10000UF 20% 80V SCREW | 77% | View |
| PEH169MJ5100QB2 | KEMET | CAP ALUM 10000UF 63V SCREW | 70% | View |
| ALS30A103DA040 | KEMET | CAP ALUM 10000UF 20% 40V SCREW | 70% | View |
| PEH200MD5100MB2 | KEMET | CAP ALUM 10000UF 20% 63V SCREW | 64% | View |
Submit your RFQ for EEG-A2A103FHE and get a quote within 24 hours.
